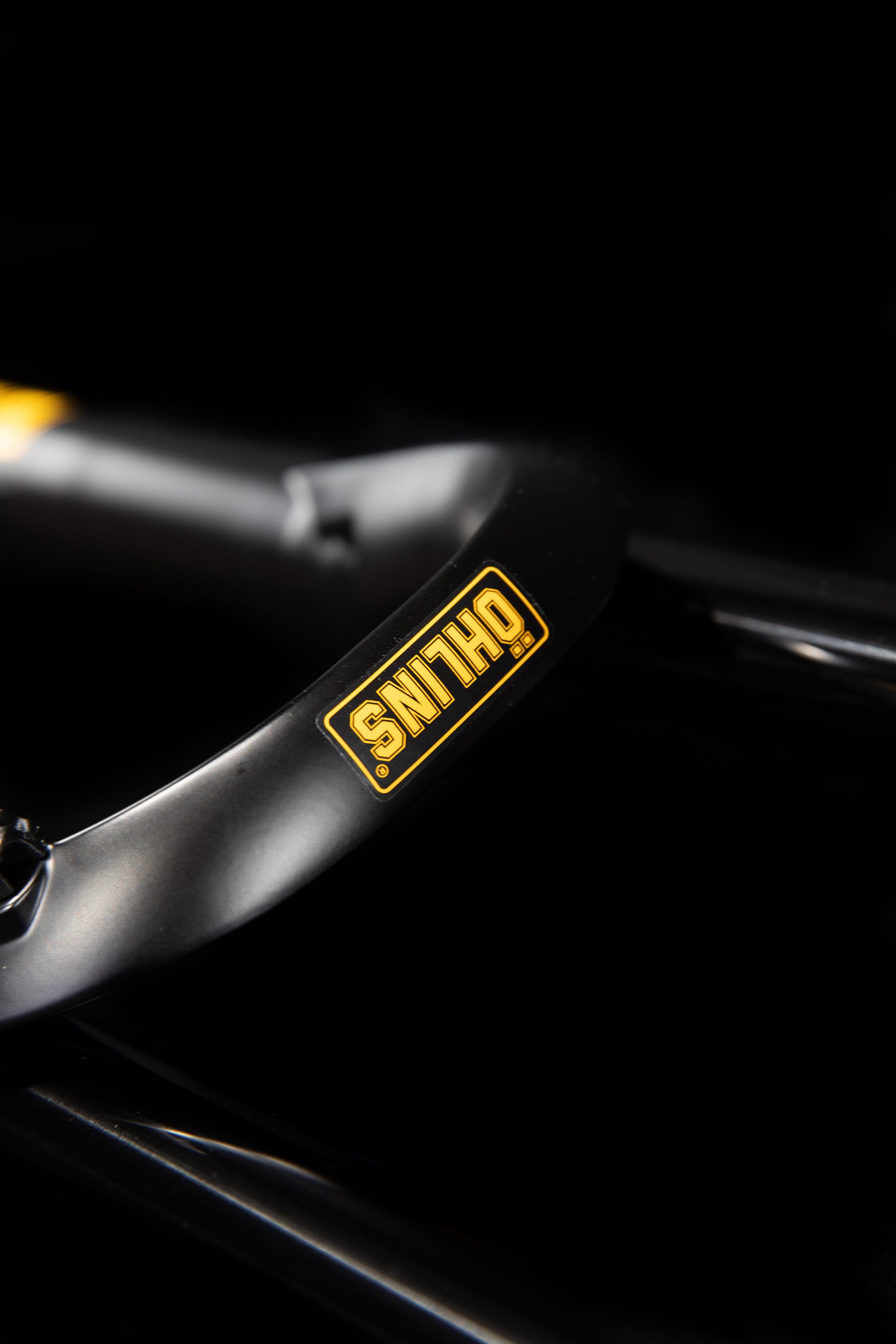

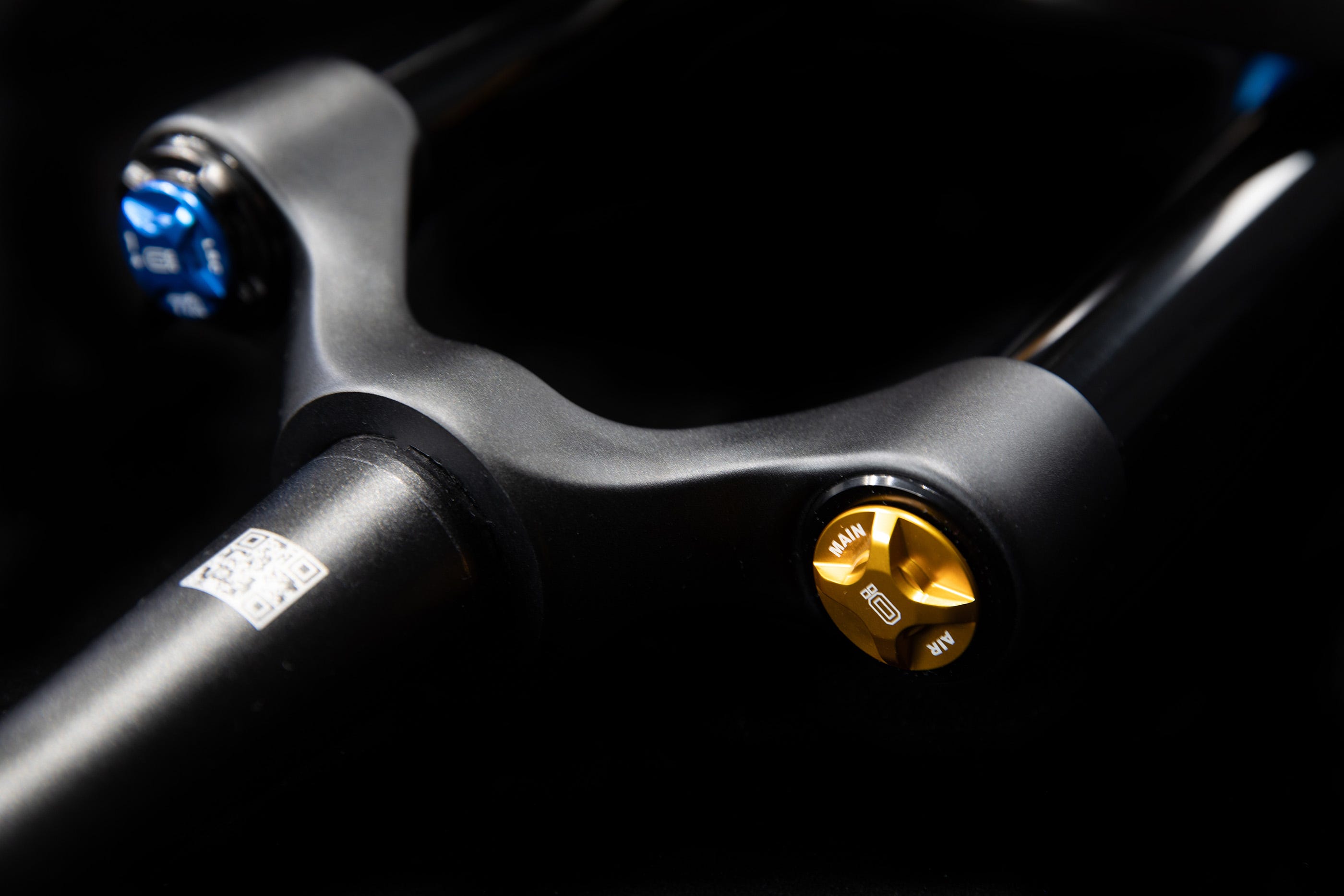

LAUNCH OF THE RXF36 m.3 FORK
The new Öhlins RXF36 m.3 features an all-new chassis built around the race-winning TTX18 damping technology—used in the DH38 Race Fork by Loic Bruni, the 2024 UCI Mountain Bike World Cup Downhill champion. This technology has been adapted to deliver its renowned top-tier traction and control on the most demanding trails. Paired with the new chassis, the fork delivers ultra-sensitive tracking over small bumps while maintaining Öhlins' signature precise steering and predictable handling—no matter how long or hard it's pushed.
It features increased internal bushing overlap and an optimised configuration for 140-160mm travel on 29” wheels (up to 170mm for 27.5”), along with crown offsets of 38, 44, and 51mm. With its updated settings and reduced chassis friction, the fork offers improved sensitivity for greater traction and comfort to conquer any trail.
The RXF36 m.3 fork is the perfect choice for the performance-oriented trail rider. The adjustment range is specifically designed for tough trails and provides 16 clicks of low-speed compression, 3 clicks of high-speed compression, and 16 clicks of rebound adjustment. It features Öhlins' floating axle design for minimal friction and weighs 2050 g (including bolts and axle). The air spring is cartridge-based and can be easily swapped between coil and air if desired.
TECHNICAL FEATURES
- Öhlins TTX technology
- Fork travel 140-160mm (170 for 27.5")
- Independent spring system
- Independent damper system
- Retuned air spring system
- 36-mm stanchion tube
- 38, 44 and 51-mm offset
- Wheel size 29" and 27.5"
- eMTB-approved
- Race-proven setting bank
- Prepared for coil spring
- Reduced chassis friction
- Floating 15x110 axel for minimum friction
- Weight 2050 g (with bolts + axle)
RRP $1,999.95
Available in 29''/51/140, 29''/44/140, 29''/51/160, 29''/44/160, 27.5''/44/160, and 27.5''/38/160
"The RXF36 platform has evolved since its introduction in 2016, and because it’s so easy to tune, it served as our do-it-all fork for a long time—ranging from short-travel trail bikes to long-travel enduro rigs... As our product line has continued to grow, it was time to give the RXF36 a new chassis, making it a sensitive and predictable trail weapon positioned between the RXF34 and the RXF38."
- Thomas Westfeldt, Senior Manager of Product Management MTB/AUTO/MC at Öhlins Racing -
